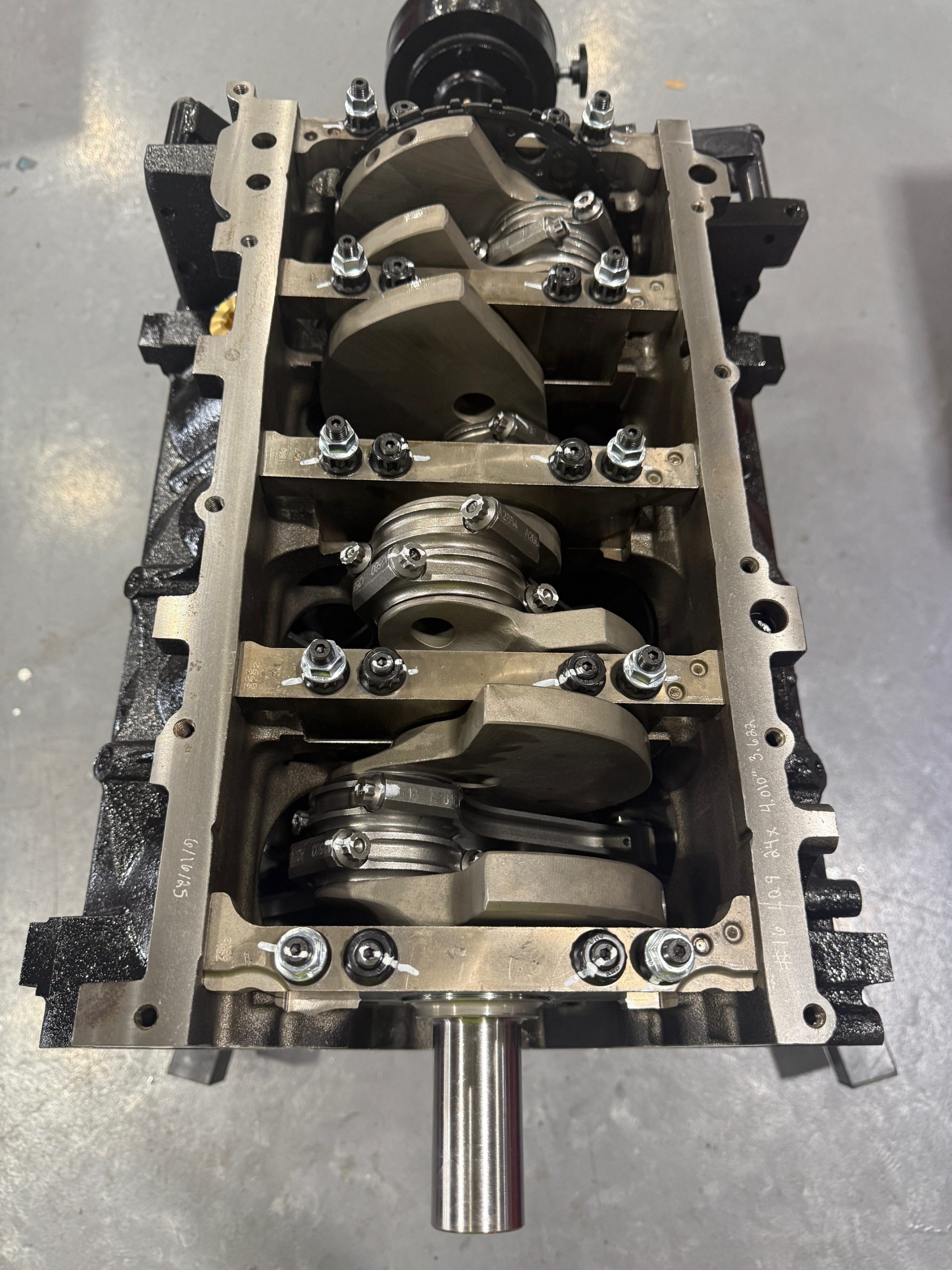

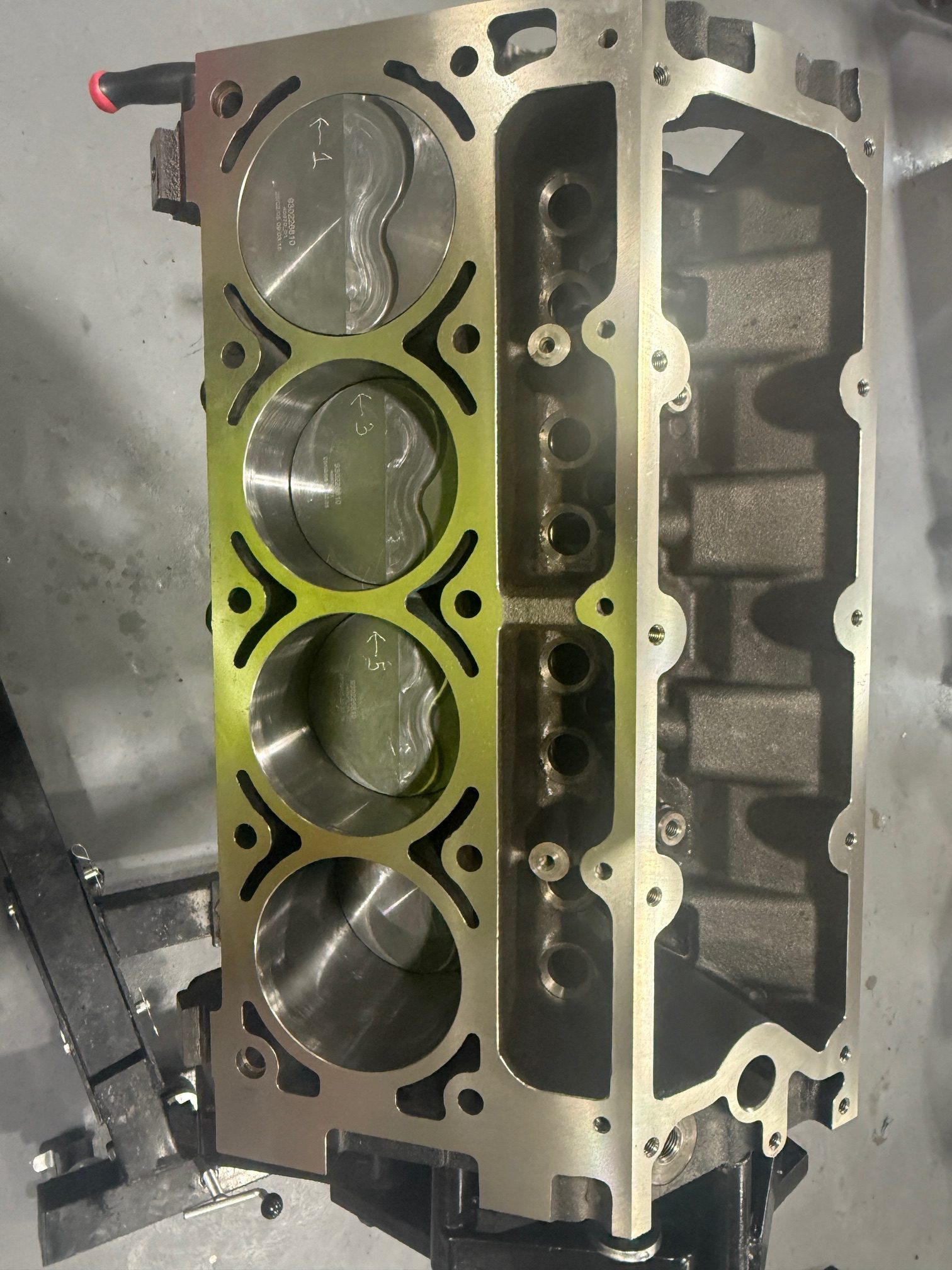

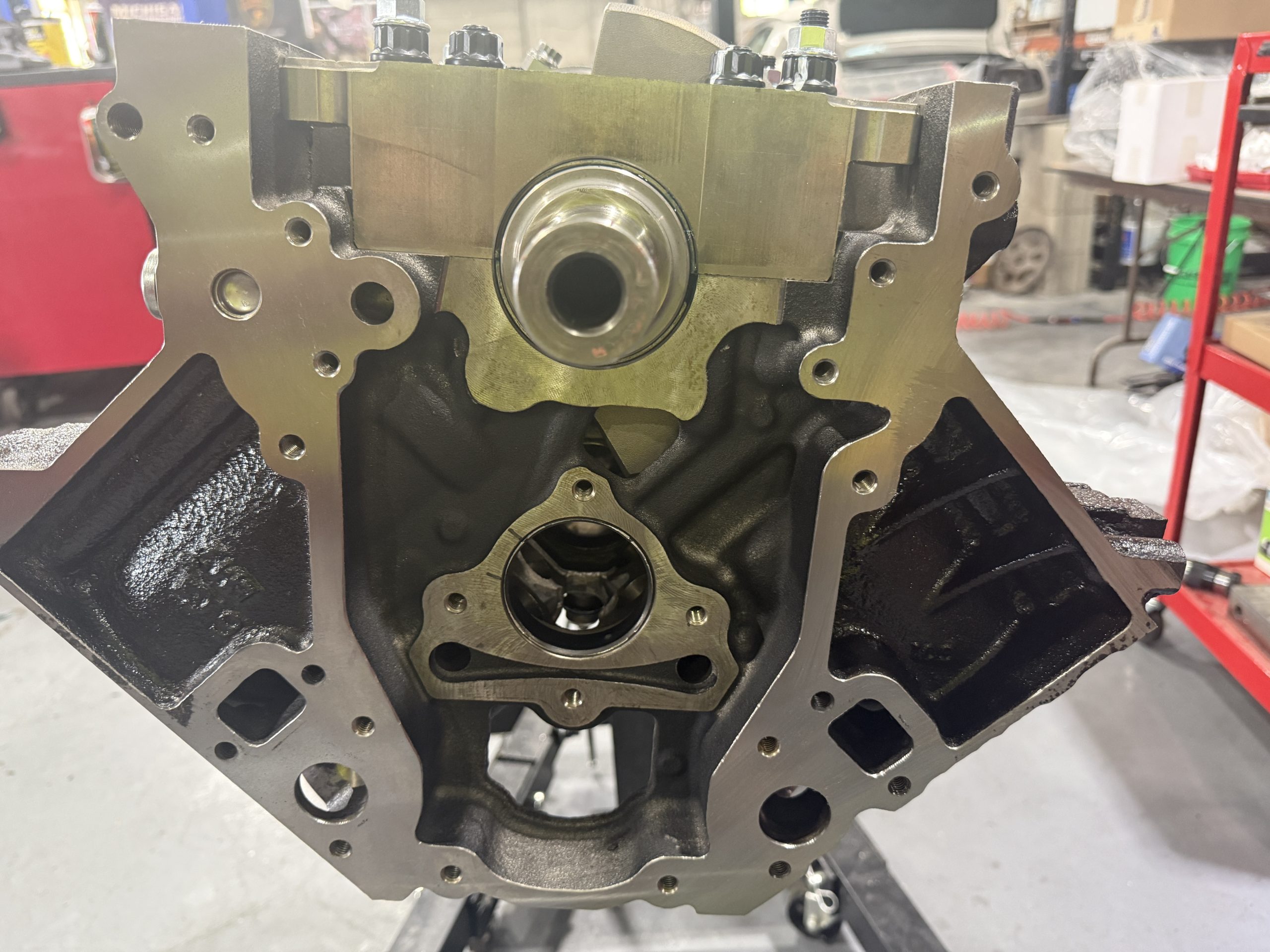

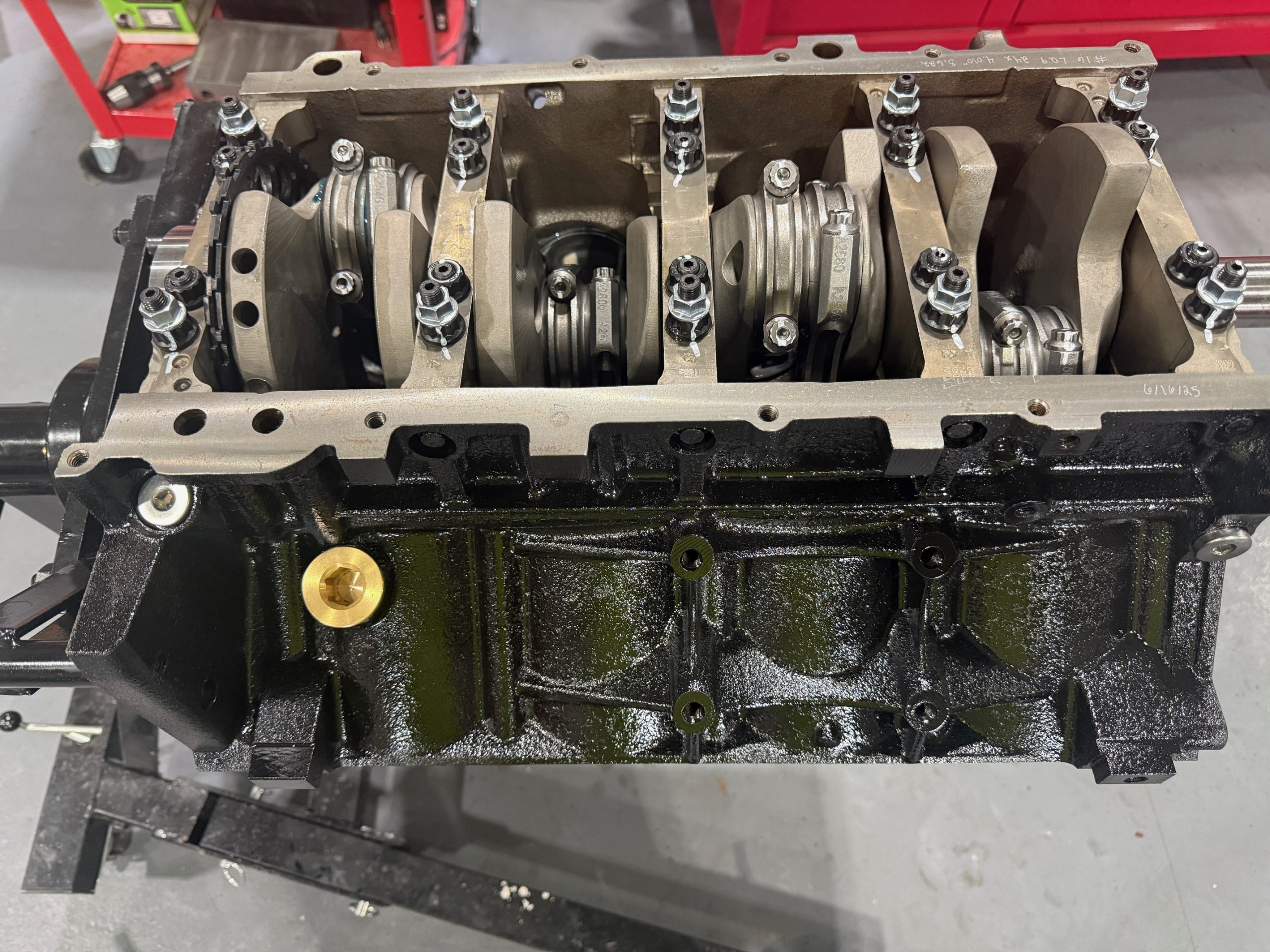

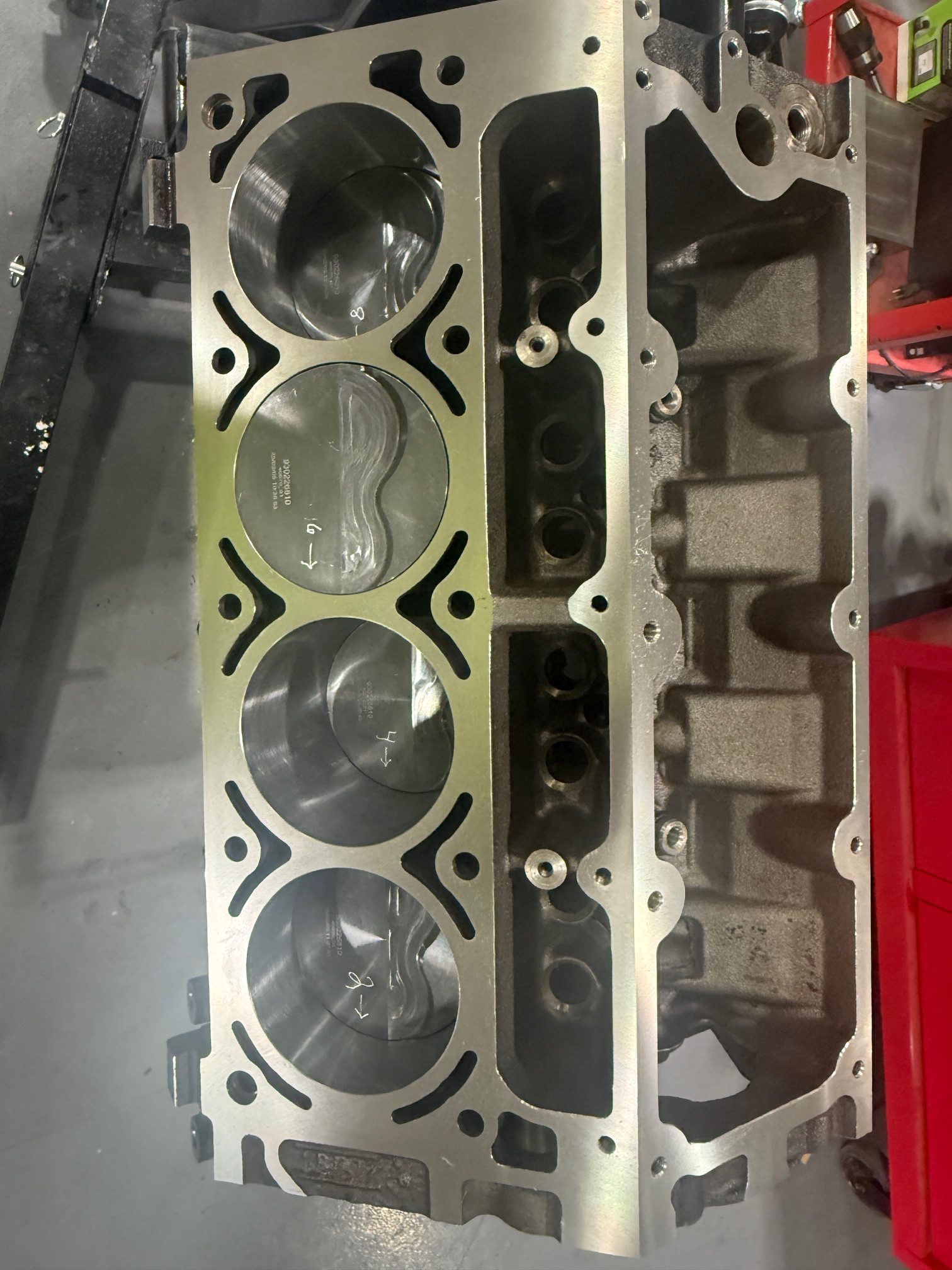

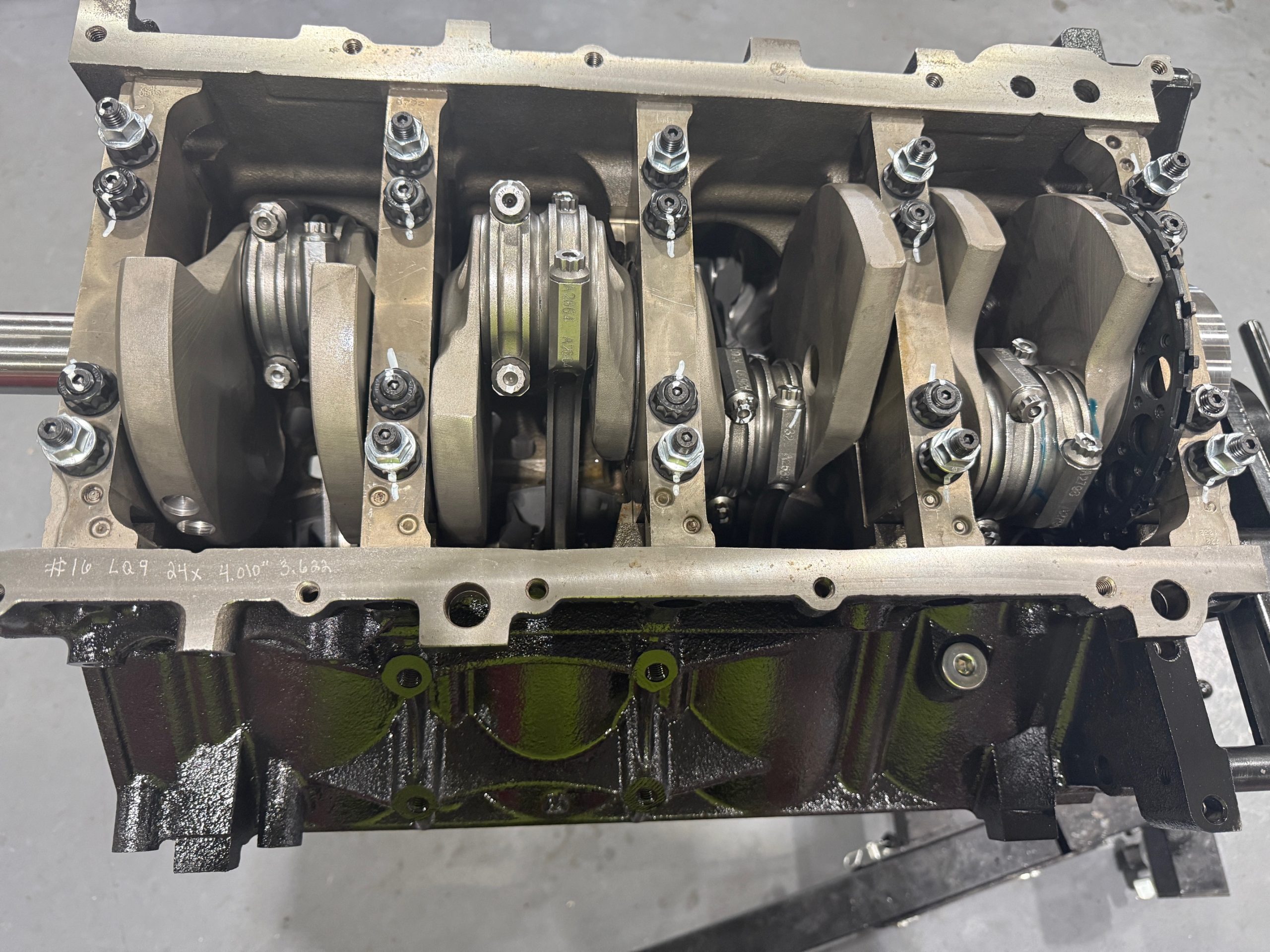

Drifter Forged Shortblock

•  Gen 3 Iron block with 4.010” bore
• 4340 Forged Crankshaft 24x with 3.622” stroke
• Hbeam 4340 forged rods
• Mahle 2618 forged pistons with performance rings.
• .022” top ring .024 second ring

The following services were completed in our machine shop:

• Jet wash
• Line hone
• Hone w/ torque plates
• CNC decked in our 4th axis fixture to true crankshaft centerline.
• Front cover of block, oil valley, and oil pan rails are machined flat as well
• Mains are at .002” clearance
• Rods are .002” oil clearance
• King XP main bearings
• King XP rod bearings
• Durabond teflon coated cam bearings
• ARP main studs
• Freeze plugs, Deburred, final cleaned
